DELPHI
TC5794

第三方数据DELPHI : TC5794

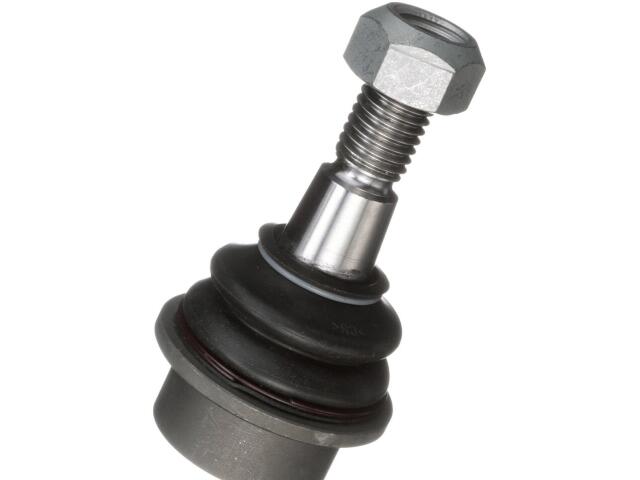

Ball Joint
DELPHI : TC5794

Adjustable: No
Ball Joint Assembly: Yes
Bushings Included: No
Castle Nut Included: No
Color: Gray
Cotter Pin Hole: No
Cotter Pin Included: No
Dust Boot: Yes
Dust Boot Material: Choloroprene Rubber (CR)
Greasable: No
Grease Fitting Included: No
Height (IN): 4.37
Length (MM): 111
Material: Steel
Maximum Outside Diameter (IN): 2.362
Maximum Outside Diameter (MM): 60.0
Mount Plate Included: No
Mounting Bolts Included: No
Mounting Hardware Included: Yes
Mounting Type: Press In
Nuts Included: Yes
Position(s): Front Lower
Stud Taper Per Foot (IN): 0.167
Stud Tapered End 1 Diameter (in): 0.957
Stud Tapered End 1 Diameter (mm): 24.3
Stud Tapered End 2 Diameter (in): 0.78
Stud Tapered End 2 Diameter (mm): 19.8
Stud Thread Diameter (MM): 18.0
Stud Thread Length (IN): 1.291
Stud Thread Pitch (mm): 2.5
Stud Type: Threaded
Suspension Grade Type: Standard
Tapered Stud: Yes
Washers Included: Yes
Width (MM): 60.0

适用车型

HUMMER (2)

参考号

厂商	号码
OE	1524557*
ACDELCO MEXICO COMMON	1524557*
ACDELCO US	1524557*
DELCO REMY AMERICA	1524557*

厂商	号码
DORMAN PREMIUM	BJ91025X*
FVP	BJ9102*
GENERAL MOTORS AU	1524557*
GM GENUINE PARTS	1524557*

厂商	号码
GM GENUINE PARTS CANADA	1524557*
MAS INDUSTRIES	BJ9102*
MOOG	K50025*
TRW AUTOMOTIVE	JBJ114*

OE号码

品牌	号码
GENERAL MOTORS CO	1524557*
