FVP
14104510

第三方数据FVP : 14104510

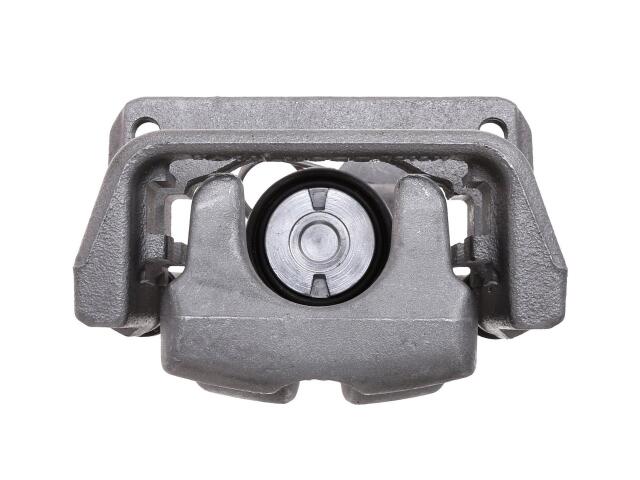

Caliper
FVP : 14104510

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 47.0mm
Bracket #: 743.04509
Bracket Air Gap: 16.5mm
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: Lucas
Caliper Type: Floating
Casting Number: 38
Inlet Fitting Type: Bubble
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 92.5mm
Mount Thread Size mm: M10-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.496 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 38
Rust Preventative Coating: Yes

适用车型

FIAT (1)

参考号

厂商	号码
OE	141-0451*
