CENTRIC
12399026

第三方数据CENTRIC : 12399026

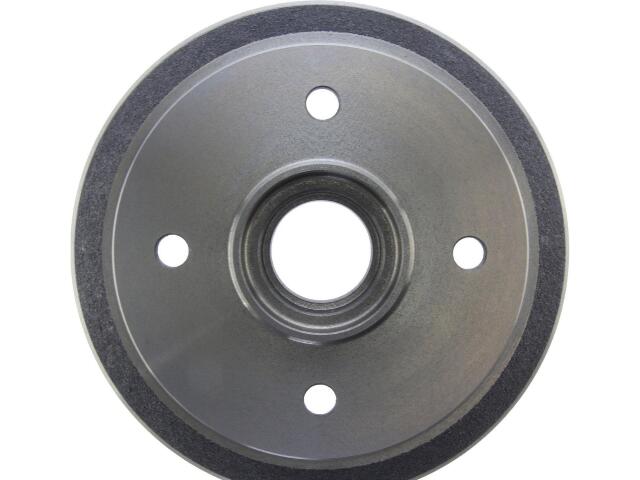

Drum
CENTRIC : 12399026

Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Bolt Hole Quantity: 4
Friction Surface Width (IN): 1.598
Friction Surface Width (MM): 40.600
Height (IN): 3.130
Height (MM): 79.500
Hub Hole / Register (IN): 2.709
Hub Hole / Register (MM): 68.800
Maximum Brake Diameter (Discard) (IN): 7.165
Maximum Brake Diameter (Discard) (MM): 182.000
Mounting Hole Diameter (IN): 0.472
Mounting Hole Diameter (MM): 12.000
Mounting Type: Hub & Drum
Nominal Drum Diameter (IN): 7.083
Nominal Drum Diameter (MM): 179.900
Outer Cooling Fins: No
Outside Diameter (IN): 8.087
Outside Diameter (MM): 205.400

适用车型

CHEVROLET (1)

PONTIAC (1)
