WAGNER
BD126322E

第三方数据WAGNER : BD126322E

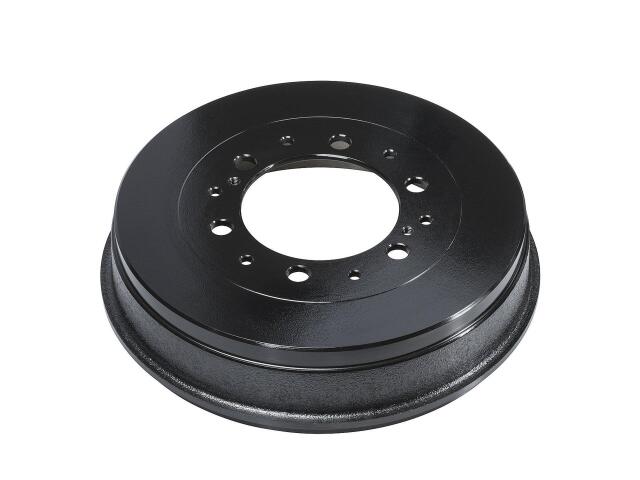

Drum
WAGNER : BD126322E

Bolt Circle Diameter (IN): 5.500
Bolt Circle Diameter (MM): 139.7
Bolt Hole Quantity: 6
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 10.000
Maximum Brake Diameter (Discard) (MM): 254.0
Nominal Drum Diameter (IN): 10.000
Nominal Drum Diameter (MM): 254.0
Outer Cooling Fins: No
Rust Resistant Coating: Yes

适用车型

TOYOTA (1)

TACOMA (3)

2.7L L4 (18)

2005	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2006	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2007	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel (Only 2 Remaining)

2008	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2009	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel (Only 2 Remaining)

2010	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel (Only 2 Remaining)

2011	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2012	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2013	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2014	Black E-Coat on Non-Braking Surface Rear; 4WD; 6 Stud Wheel (Only 2 Remaining)

2015	Black E-Coat on Non-Braking Surface Rear; 4WD; 6 Stud Wheel

2016	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2017	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel (Only 2 Remaining)

2018	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2019	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2020	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

2021	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel (Only 2 Remaining)

2022	Black E-Coat on Non-Braking Surface Rear; 6 Stud Wheel

3.5L V6 (7)

4.0L V6 (11)
