AMS AUTOMOTIVE
167424

第三方数据AMS AUTOMOTIVE : 167424

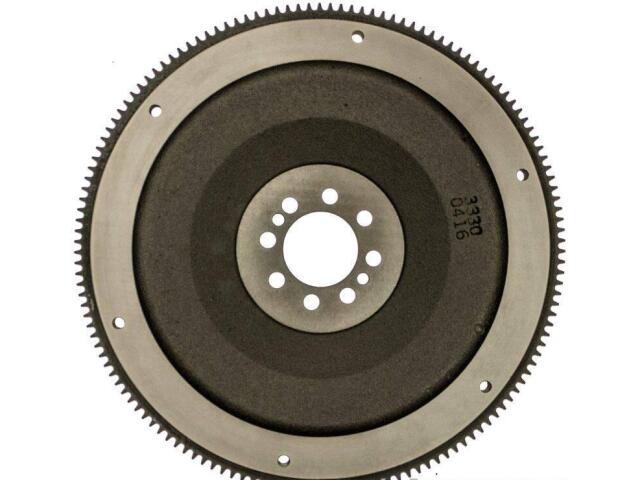

Flywheel
AMS AUTOMOTIVE : 167424

Counter Bore Depth (IN): 0.756
Counter Bore Diameter (PP) (IN): 6.021
Cover Pressure Plate Mounting Bolt Circle Diameter (IN): 12.625
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Crank Bolt Circle Diameter (IN): 3.151
Crank Center Hole Diameter (IN): 2.158
Crank Mating Surface to PP Mounting Surface (IN): 1.202
Flywheel Type: Solid
Friction Surface Configuration: Flat
Mounting Hole Diameter (IN): 0.43
Mounting Hole Quantity: 8
Pressure Plate Bolt Hole Thread Size: 3/8 x 16T
Ring Gear Outside Diameter (IN): 14.59
Tooth Quantity: 143

适用车型

DODGE (3)

参考号

厂商	号码
AUTOZONE/LUK	LFW24*

厂商	号码
LUK AUTOMOTIVE SYSTEMS	LFW24*
