AMS AUTOMOTIVE
167781

第三方数据AMS AUTOMOTIVE : 167781

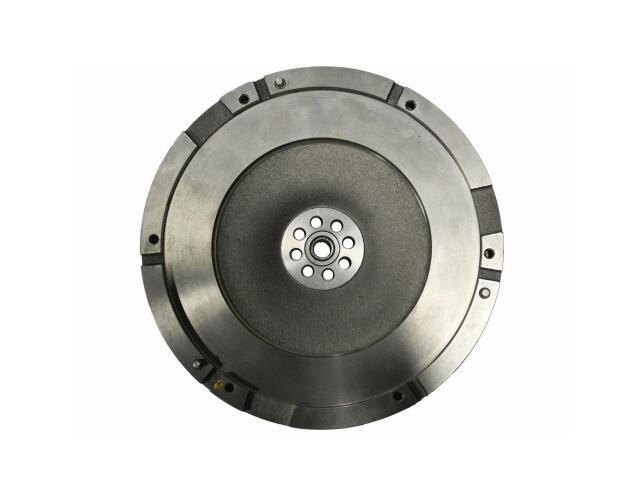

Flywheel
AMS AUTOMOTIVE : 167781

Counter Bore Depth (IN): 0.29
Counter Bore Diameter (PP) (IN): 7.285
Cover Pressure Plate Mounting Bolt Circle Diameter (IN): 10.625
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Crank Bolt Circle Diameter (IN): 1.752
Crank Center Hole Diameter (IN): 1.124
Crank Mating Surface to PP Mounting Surface (IN): 1.997
Dowel Pin Diameter Cover To Flywheel (IN): 0.25
Flywheel Step (IN): -0.412
Flywheel Type: Solid
Friction Surface Configuration: Raised
Mounting Hole Diameter (IN): 0.404
Mounting Hole Quantity: 8
Pressure Plate Bolt Hole Thread Size: M8 x 1.25
Ring Gear Outside Diameter (IN): 11.66
Tooth Quantity: 138

适用车型

FORD (1)

参考号

厂商	号码
AUTOZONE/AMS	16778*
NEW GENERATION/AMS	16778*

厂商	号码
PROFESSIONALS' CHOICE/AMS	16778*
RHINOPAC/AMS	16778*

厂商	号码
STANDARD FLYWHEEL	78*
WORLD CAR/AMS	16778*
