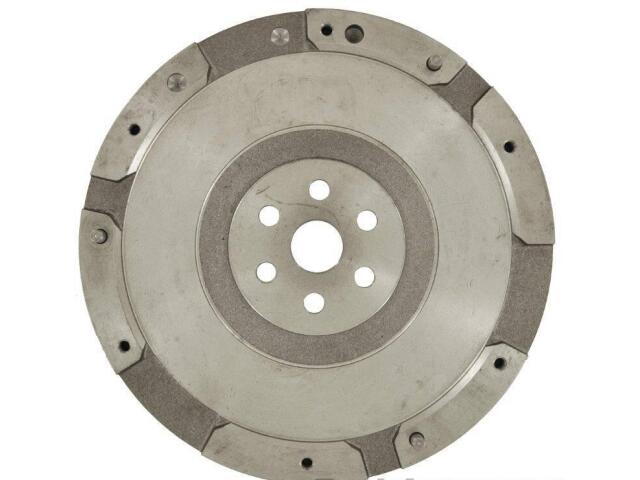

Flywheel
AMS AUTOMOTIVE : 167906

Counter Bore Depth (IN): 0.12
Counter Bore Diameter (PP) (IN): 5.81
Cover Pressure Plate Mounting Bolt Circle Diameter (IN): 10.24
Cover Pressure Plate Mounting Hole To Flywheel Quantity: 6
Crank Bolt Circle Diameter (IN): 2.758
Crank Center Hole Diameter (IN): 1.26
Crank Mating Surface to PP Mounting Surface (IN): 1.086
Dowel Pin Diameter Cover To Flywheel (IN): 0.317
Flywheel Step (IN): 0.298
Flywheel Type: Solid
Friction Surface Configuration: Raised
Mounting Hole Diameter (IN): 0.5
Mounting Hole Quantity: 6
Pressure Plate Bolt Hole Thread Size: M8 x 1.25
Ring Gear Outside Diameter (IN): 11.37
Tooth Quantity: 112

适用车型

MAZDA (1)
