OSC
2608

第三方数据OSC : 2608

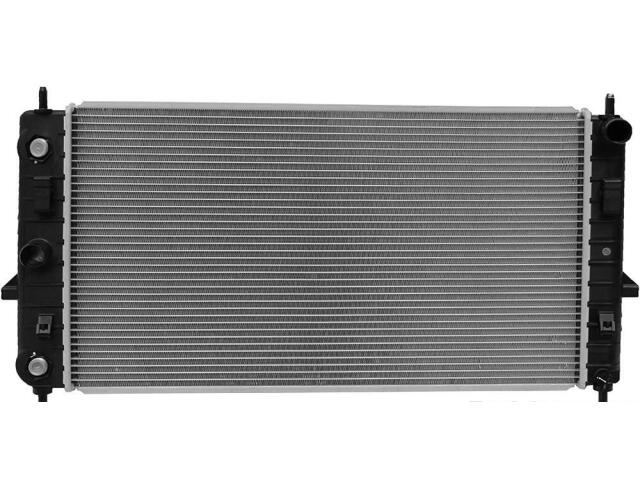

Radiator
OSC : 2608

Core Height (IN): 26 3/4
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 5/8
Core Thickness (MM): 16
Core Width (IN): 14 7/8
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 15 1/8
Inlet Header Width (IN): 2
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 15 1/8
Outlet Header Width (IN): 2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 11 1/2
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 3

适用车型

PONTIAC (1)

SATURN (1)

参考号

厂商	号码
OE	5238163*

厂商	号码
OE	5248216*
