第三方数据TYC : 13363

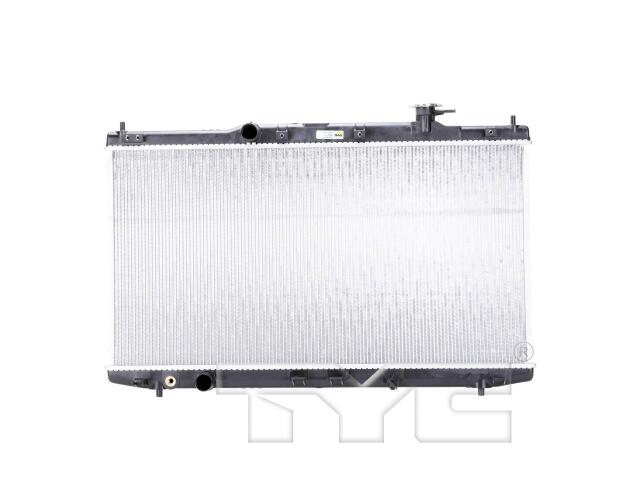

Radiator
TYC : 13363

Bottom Header: 2.02" x 31.37
Core Height (IN): 30.14
Core Length (IN): 15.75
Core Material: Aluminum
Core Thickness (IN): 0.63
Engine Oil Cooler Included: No
Fin Count (Every 4"): 78
Fin Wave Height (IN): 0.20
Find Wave Pitch: 2.6
Flow Configuration: Downflow
Inlet Connection Type: Hose Clamp
Inlet Diameter (IN): 1.30
Number of Rows: 1
Outlet Connection Type: Hose Clamp
Outlet Diameter (IN): 1.28
Top Header: 1.43" x 31.37
Total Fin Row Count: 118
Total Tube Count: 117
Transmission Oil Cooler Included: No
Tube Count (Every 4"): 16
Tube Width x Height: 16X1.5

适用车型

HONDA (1)

ACURA (1)

参考号

厂商	号码
OE	HO301023*
OE	190105A2A0*
OE	190105A2A0*
OE	190105A2A0*
ADVANCE INTERCOOLER	81336*
ADVANCE/CARQUEST RADIATOR	81336*
APDI	801336*
AUTOZONE/DENSO	221-932*

厂商	号码
AUTOZONE/UAC PARTS	RA 13363*
CARQUEST RADIATOR	81336*
DENSO	221-932*
DPI	1336*
HONDA	19010-5A2-A0*
HONDA	19010-5A2-A0*
HONDA	19010-5A2-A0*
MURRAY HEAT TRANSFER	CU1336*

厂商	号码
O'REILLY/MURRAY HEAT TRANSFER	801336*
OR/MURRAY HEAT TRANSFER	801336*
PARTSLINK	HO301023*
REACH COOLING	41-1336*
SPECTRA PREMIUM MOBILITY SOLUTIONS	CU1336*
TRQ	RDA8735*
UNIVERSAL AIR CONDITIONER, INC.	RA 1336*
UNIVERSAL AIR CONDITIONER, INC.	RA 13363*

OE号码

品牌	号码
ACURA (SEE HONDA)	19010-5A2-A0*
HONDA	19010-5A2-A0*

品牌	号码
HONDA	19010-5A2-A0*

品牌	号码
HONDA	19010-5A2-A0*
