CENTRIC
12007018

第三方数据CENTRIC : 12007018

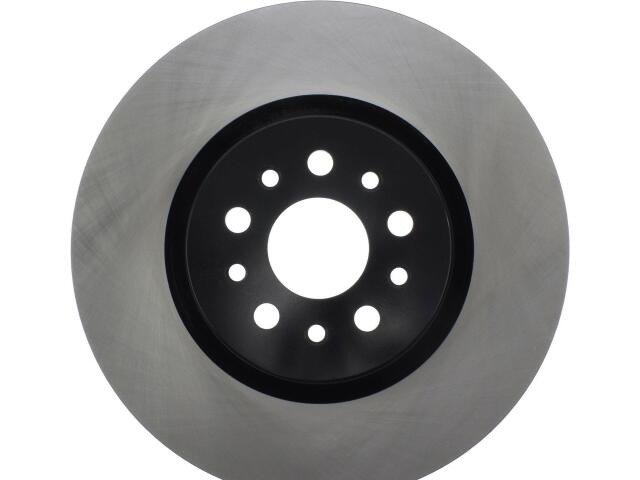

Rotor
CENTRIC : 12007018

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Mounting: Floating
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30.000
Hat Finish: Coated
Hat ID (IN): 6.575
Hat ID (MM): 167.000
Misc Holes: 5
Nominal Thickness (IN): 1.260
Nominal Thickness (MM): 32.000
OEM Vane Count: 37
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345.000
Overall Height (IN): 1.791
Overall Height (MM): 45.500
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Curved

适用车型

MASERATI (1)

OE号码

品牌	号码
CENT	120.0701*
