CENTRIC
12163042

第三方数据CENTRIC : 12163042

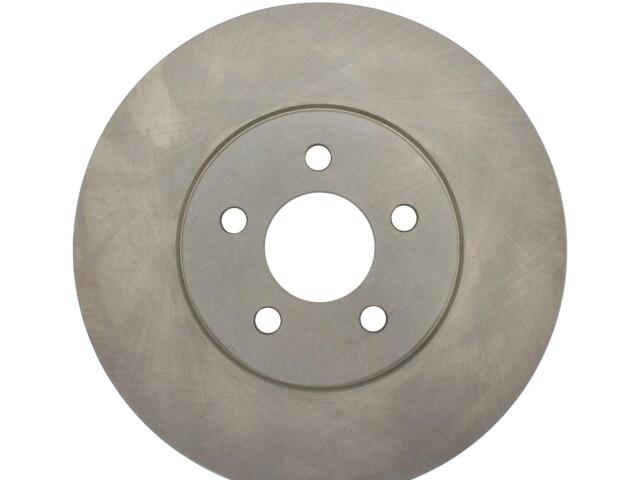

Rotor
CENTRIC : 12163042

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Mounting: Floating
Discard Thickness (IN): 0.843
Discard Thickness (MM): 21.400
Misc Holes: 0
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23.000
Outside Diameter (IN): 11.114
Outside Diameter (MM): 282.300
Overall Height (IN): 1.264
Overall Height (MM): 32.100
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

CHRYSLER (1)

DODGE (1)

STRATUS (6)

2.4L L4 (1)

2.4L L4 DOHC (4)

2.4L L4 SOHC (4)

2.4L L4 Turbocharged (5)

2.7L V6 (5)

3.0L V6 (4)

参考号

厂商	号码
AMERIBRAKES	49171*
AMS AUTOMOTIVE	100-536*
AMS AUTOMOTIVE	100-538*
AUTOZONE/BRAKEWARE-BENDIX	PRT504*
BENDIX	PRT504*
BENDIX GLOBAL	PRT504*

厂商	号码
BEST BRAKES USA	GP536*
BEST BRAKES USA	GP538*
IMC	405 14 00*
MAGMA BRAKES	PMR14304*
MAGMA BRAKES	PMR14304*

厂商	号码
PRO-SERIES OE BRAKE SHOES AND PADS	PS538*
TRANSGLOBE AUTOMOTIVE	GBC 536*
TRANSGLOBE AUTOMOTIVE	GBC 538*
TRANSGLOBE AUTOMOTIVE	GC536*
TRANSGLOBE AUTOMOTIVE	GC538*

OE号码

品牌	号码
CENT	121.6304*
