CENTRIC
22767054R

第三方数据CENTRIC : 22767054R

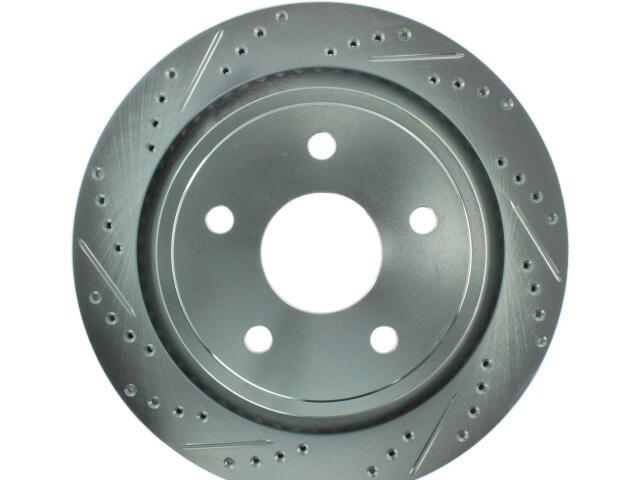

Rotor
CENTRIC : 22767054R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.091
Center Hole Diameter (MM): 78.500
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.803
Discard Thickness (MM): 20.400
Hat ID in: 7.992
Hat ID mm: 203.000
Max PB Drum Dia in: 8.157
Max PB Drum Dia mm: 207.200
Mounting Bolt Hole Circle Diameter (IN): 5.512
Mounting Bolt Hole Circle Diameter (MM): 140.000
Nominal Drum Diameter (IN): 8.110
Nominal Drum Diameter (MM): 206.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 13.858
Outside Diameter (MM): 352.000
Overall Height (IN): 2.835
Overall Height (MM): 72.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.669
Stud/Lug Hole Diameter (MM): 17.000
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

CHRYSLER (1)

DODGE (2)

DURANGO (3)

RAM 1500 PICKUP (5)

RAM (1)

OE号码

品牌	号码
CENT	227-67054*
