FVP
12135074

第三方数据FVP : 12135074

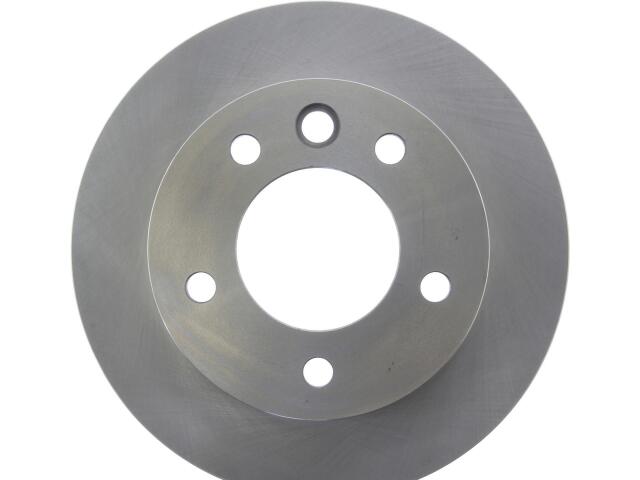

Rotor
FVP : 12135074

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.346
Center Hole Diameter (MM): 85.000
Disc Mounting: Floating
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19.000
Mounting Bolt Hole Circle Diameter (IN): 5.118
Mounting Bolt Hole Circle Diameter (MM): 130.000
Nominal Thickness (IN): 0.862
Nominal Thickness (MM): 21.900
Outside Diameter (IN): 11.201
Outside Diameter (MM): 284.500
Overall Height (IN): 2.843
Overall Height (MM): 72.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.591
Stud/Lug Hole Diameter (MM): 15.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

DODGE (2)

FREIGHTLINER (2)

MERCEDES-BENZ (1)

参考号

厂商	号码
OE	121-3507*
