FVP
12140081

第三方数据FVP : 12140081

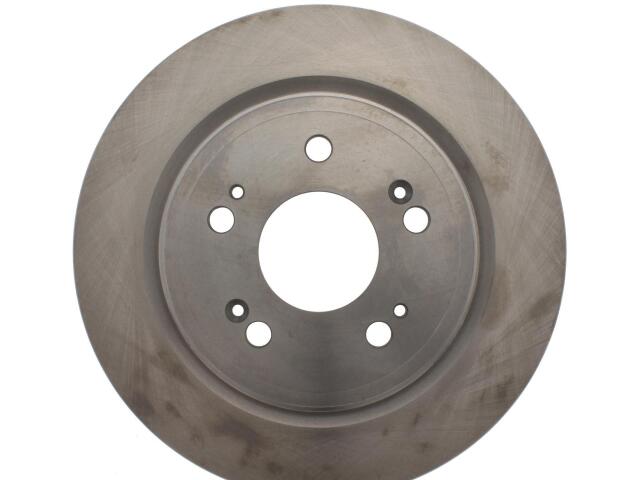

Rotor
FVP : 12140081

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.757
Center Hole Diameter (MM): 70.020
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 6.728
Hat ID mm: 170.900
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Notes: Similar to 120.40087
Outside Diameter (IN): 12.205
Outside Diameter (MM): 310.000
Overall Height (IN): 1.524
Overall Height (MM): 38.700
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

ACURA (1)

参考号

厂商	号码
OE	121-4008*
