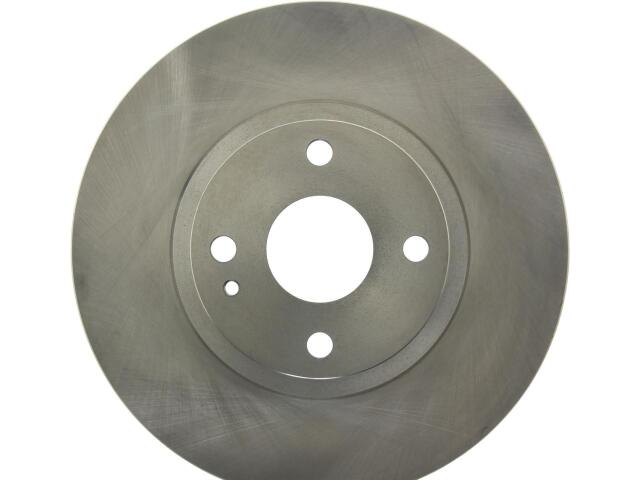

Rotor
FVP : 12145061

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 10.610
Outside Diameter (MM): 269.500
Overall Height (IN): 1.811
Overall Height (MM): 46.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

参考号

厂商	号码
OE	121-4506*
