第三方数据FVP : 12151006

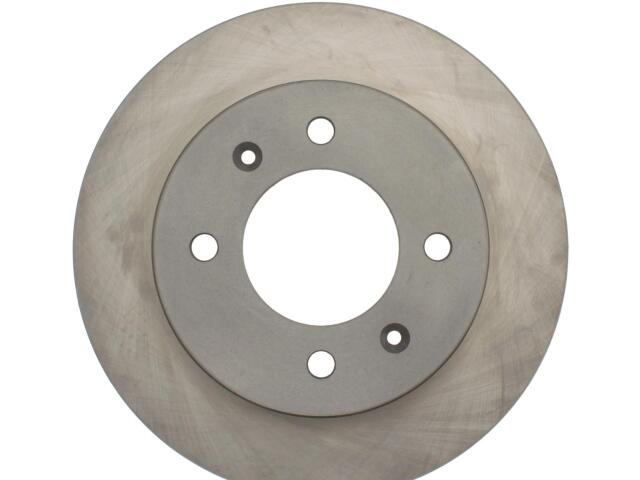

Rotor
FVP : 12151006

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.996
Center Hole Diameter (MM): 76.100
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.146
Outside Diameter (MM): 257.700
Overall Height (IN): 1.591
Overall Height (MM): 40.400
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

HYUNDAI (1)

参考号

厂商	号码
OE	121-5100*
