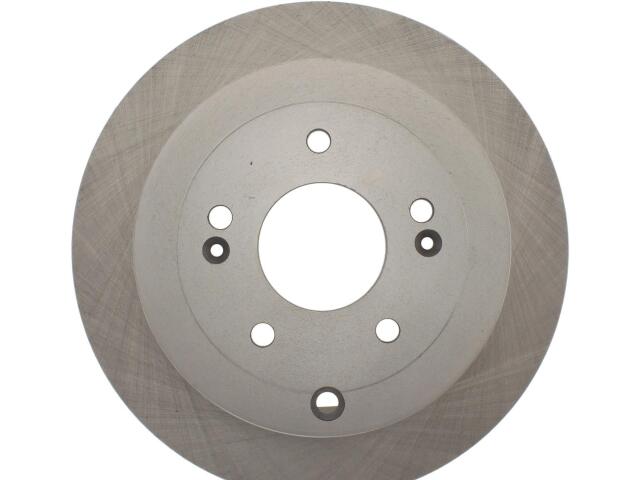

Rotor
FVP : 12151025

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.713
Center Hole Diameter (MM): 68.900
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.370
Discard Thickness (MM): 9.400
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.437
Nominal Thickness (MM): 11.100
Outside Diameter (IN): 11.890
Outside Diameter (MM): 302.000
Overall Height (IN): 2.835
Overall Height (MM): 72.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HYUNDAI (1)

参考号

厂商	号码
OE	121-5102*
