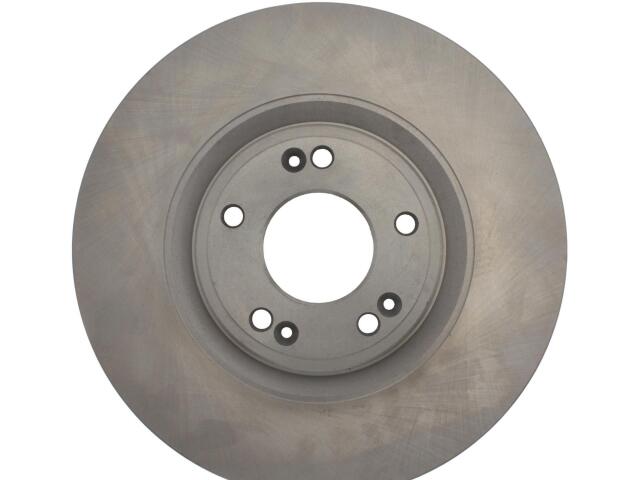

Rotor
FVP : 12151032

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69.000
Disc Mounting: Floating
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 2.236
Overall Height (MM): 56.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.492
Stud/Lug Hole Diameter (MM): 12.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

HYUNDAI (1)

参考号

厂商	号码
OE	121-5103*
