FVP
12163078

第三方数据FVP : 12163078

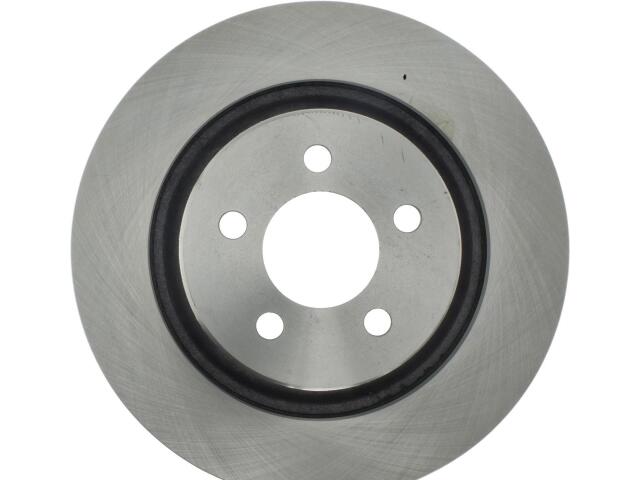

Rotor
FVP : 12163078

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.839
Center Hole Diameter (MM): 72.100
Disc Mounting: Floating
Discard Thickness (IN): 1.039
Discard Thickness (MM): 26.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 13.071
Outside Diameter (MM): 332.000
Overall Height (IN): 2.524
Overall Height (MM): 64.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.657
Stud/Lug Hole Diameter (MM): 16.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

JEEP (1)

参考号

厂商	号码
OE	121-6307*
