RAYBESTOS
980783FZN

第三方数据RAYBESTOS : 980783FZN

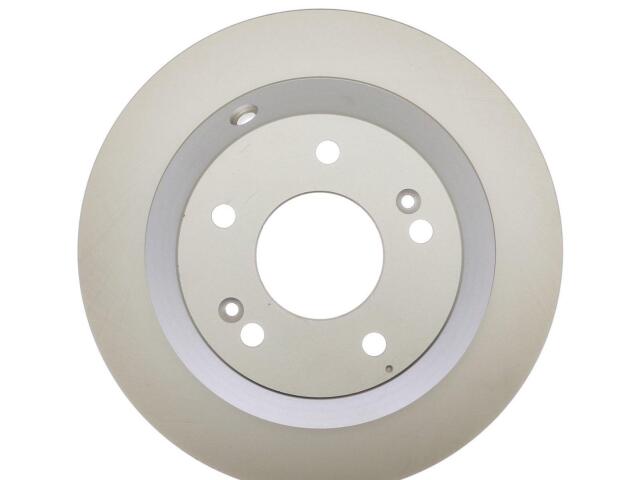

Rotor
RAYBESTOS : 980783FZN

Discard Thickness (IN): 0.370
Discard Thickness (MM): 9.400
Inside Diameter (IN): 8.142
Inside Diameter (MM): 206.800
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.434
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 11.892
Outside Diameter (MM): 302.050
Overall Height (IN): 2.816
Overall Height (MM): 71.550
Rotor Type: Drum-in-Hat
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Wheel Bolt Circle Diameter (IN): 4.500
Wheel Bolt Circle Diameter (MM): 114.300
Wheel Bolt Holes: 5

适用车型

HYUNDAI (2)

SANTA FE (4)

2.0L L4 Turbocharged (6)

2.4L L4 (9)

3.3L V6 (6)

3.5L V6 (3)

SANTA FE XL (1)

KIA (2)

参考号

厂商	号码
ADVANCE	29009*
ADVANCE	YH536732*
ADVANCE	YH29009*
ADVANCE	YH290094*
ADVANCE	YH290094*
ADVANCE/CARQUEST PLATINUM ROTORS	YH290094*
ADVANCE/CARQUEST PLATINUM ROTORS	YH290094*
ADVANCE/CARQUEST PLATINUM ROTORS	YH29009*
ADVANCE/CARQUEST PLATINUM ROTORS	YH536732*
ADVANCE/CARQUEST PLATINUM ROTORS	29009*
ADVANCE/CARQUEST WEAREVER BRAKES	YH290094*
ADVANCE/CARQUEST WORLDPAC	YH290094*
ADVANCE/CARQUEST WORLDPAC	YH29009*
ADVANCE/CARQUEST WORLDPAC	YH536732*
ADVANCE/CARQUEST WORLDPAC	YH290094*
ADVANCE/CARQUEST WORLDPAC	29009*
AMERIBRAKES	58330*
API	1407-29009*
AUTO EXTRA DRUMS-ROTORS/NEW SEQ	AX90089*
AUTOPART INTERNATIONAL	1427-49933*
AUTOPARTSOURCE	58330*
AUTOXTRA	AX90089*
AUTOZONE/DURALAST GOLD-ROTORS	70109D*
AUTOZONE/DURALAST-NEOTEK	7010*
AUTOZONE/RAYBESTOS	980783FZ*
BENDIX	PRT603*
BEST BRAKES USA	PQS3155*
BOSCH	2801149*
BOSCH BRAKE	2801149*
BRAKEBEST	2801149*
BRAKEBEST	980783FZ*
BRAKEBEST	980783*
BRAKEBEST	98078*
BRAKEBEST	980783RG*
BRAKEBEST COATED CALIPERS	980783RG*

厂商	号码
BRAKEBEST COATED CALIPERS	98078*
BRAKEBEST COATED CALIPERS	980783*
BRAKEBEST COATED CALIPERS	980783FZ*
BRAKEBEST COATED CALIPERS	2801149*
CARQUEST PREMIUM COATED ROTORS	YH290094*
CENTRIC PARTS	320.50031*
CENTRIC PARTS	320.5103*
CENTRIC PARTS	227.51039*
CENTRIC PARTS	227.51039*
CENTRIC PARTS	120.5103*
CENTRIC PARTS	121.5003*
CENTRIC PARTS	121.5103*
CENTRIC PARTS	125.5003*
CENTRIC PARTS	126.50031S*
CENTRIC PARTS	126.50031S*
CENTRIC PARTS	126.51039CS*
CENTRIC PARTS	126.51039CS*
CENTRIC PARTS	126.51039S*
CENTRIC PARTS	126.51039S*
CENTRIC PARTS	127.50031*
CENTRIC PARTS	127.50031*
CENTRIC PARTS	127.51039*
CENTRIC PARTS	127.51039*
CENTRIC PARTS	128.50031*
CENTRIC PARTS	128.50031*
CENTRIC PARTS	128.51039*
CENTRIC PARTS	128.51039*
DFC	600-2102*
DURAGO	90089*
DURAGO	BR90089*
DURAGO	BR9008940*
DURAGO	BR90098*
EUROROTOR	HY-301*
EVOLUTION BUNDLES BY POWER STOP	JBR1532EV*
EVOLUTION BUNDLES BY POWER STOP	JBR1705EV*

厂商	号码
NAPA	SDK662*
NEWTEK AUTOMOTIVE	3155*
O'REILLY BRAKEBEST	2801149*
O'REILLY BRAKEBEST	980783RG*
O'REILLY BRAKEBEST	98078*
O'REILLY BRAKEBEST	980783FZ*
O'REILLY BRAKEBEST	980783*
O'REILLY/BRAKEBST SELECT	980783*
O'REILLY/BRAKEBST SELECT	980783FZ*
O'REILLY/BRAKEBST SELECT	98078*
O'REILLY/BRAKEBST SELECT	980783RG*
O'REILLY/BRAKEBST SELECT	2801149*
PARTS MASTER/BRAKE DRUMS & ROTORS - UAP	90089*
PARTS MASTER/BRAKE ROTOR & DRUM	90089*
POWER STOP	JBR1705EV*
POWER STOP	JBR1532EV*
PROMAX	20-3155*
PROMAX	14-3155*
QUALIS	4471*
ULTRA BRAKE SYSTEMS	KI-96*
ULTRA BRAKE SYSTEMS	HY-301*
ULTRA HC	66191*
UQUALITY AUTOMOTIVE PRODUCTS	290089*
UQUALITY AUTOMOTIVE PRODUCTS	294082*
UQUALITY AUTOMOTIVE PRODUCTS	R5103*
WAGNER BRAKE	SB98078*
WAGNER BRAKE	BD180392*
WAGNER BRAKE	BD18039*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	BD18039*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	SB98078*
WAGNER CALIPERS	SB98078*
WAGNER CALIPERS	BD18039*
WINHERE	66191*
WINHERE BRAKE PARTS INC.	66191*

OE号码

品牌	号码
RAYBES	RAD1682*
HYUNDAI	584412W01*
HYUNDAI	58411-2P00*

品牌	号码
HYUNDAI	58411-2W01*
KIA	58411A900*

品牌	号码
KIA	58411C500*
KIA	58411C600*
